The sample modules act on the SAMPLE table, allowing the user to correct errors in the database. Users can cancel unwanted samples (Cancel Samples), restore mistakenly canceled samples to active status (Uncancel Samples), change the parentage of a sample to another parent sample (Reparent Samples), and edit certain fields for samples (Edit Samples).
Each LIME module screen is color-coded to help differentiate one page from another. Clicking between functions (e.g., Cancel Samples to Edit Samples) clears the search and results from the previous screen. Each module defaults to the hierarchy search screen (“Select by Hierarchy” tab). To search by TEXT_ID, click on the “Select by TEXT_ID” tab.
IMPORTANT: Switching between the “Select by Hierarchy” and “Select by TEXT_ID” tabs does not clear the search parameters and query results unless a selection is made or values are entered into a field. If this is done, all parameters and query results will be cleared from the program.

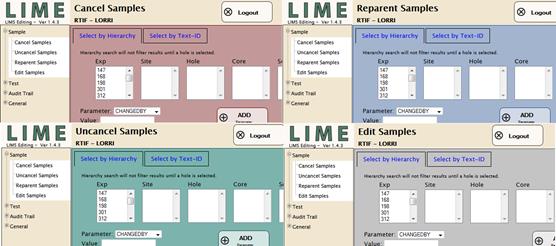

Figure 6. LIME Sample Module Navigation.
The basic layout of each of the four sample modules is the same because the search functionality and workflow is very similar between the four sample modules.
