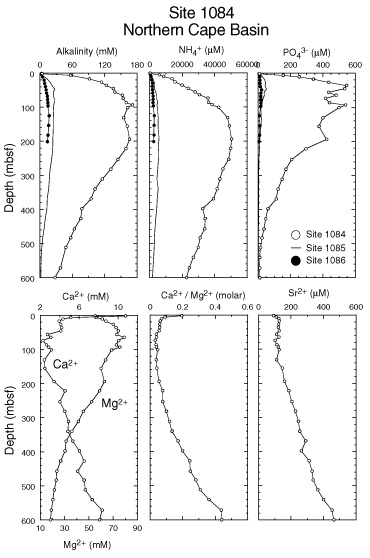

Figure 6. Complete chemical profiles at Site 1084 (Northern Cape Basin) to total depth. These are the second highest values of alkalinity and dissolved NH4+ ever observed in DSDP/ODP drilling history (see text). Other Cape Basin sites are plotted for comparison.

Figure 6. Complete chemical profiles at Site 1084 (Northern Cape Basin) to total depth. These are the second highest values of alkalinity and dissolved NH₄⁺ ever observed in DSDP/ODP drilling history (see text). Other Cape Basin sites are plotted for comparison.
