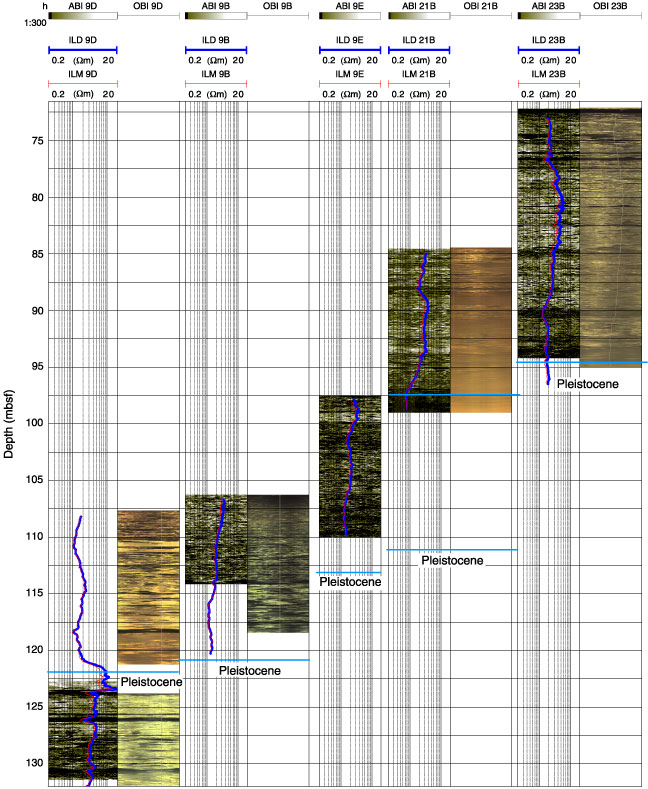

Figure F14. Composite of optical image (OBI), acoustic image (ABI), and resistivity downhole logging data for holes in the Tiarei area (see Fig. F4 for locations). ILD = induction resistivity deeper investigation depth, ILM = induction resistivity medium investigation depth.
